Robertshaw Ignitor,24V Low Voltage 780-502
Product details
| Management number | 230998916 | Release Date | 2026/06/18 | List Price | US$66.46 | Model Number | 230998916 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

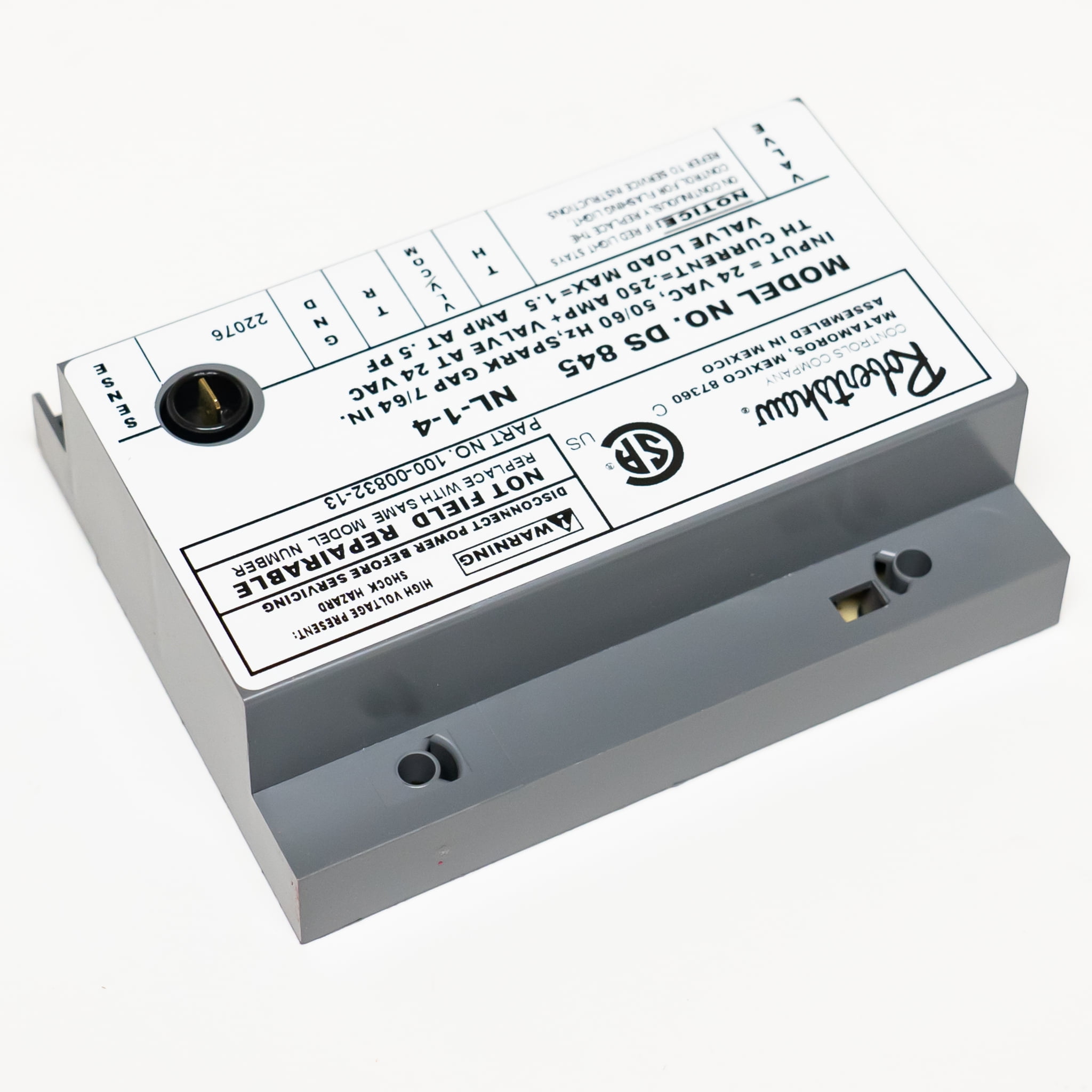

Robertshaw 780-502 DS 845 24V Direct Spark Ignition Control The 24 VAC DS845 Direct Ignition Control is applicable to commercial cooking equipment, gas fired heating and water heating systems of many types. The system acts on a demand for heat by a switch or thermostat to open the gas valve. At the same time the DS845 ignition control supplies a spark to the electrode which ignites the gas. After the gas is lit, an electronic circuit proves the presence of flame using flame rectification. When the thermostat is satisfied, the gas valve will be closed to shut off main burner gas. Cross Reference Old Robertshaw No. / New Robertshaw No. 100-00832-02 / 100-00832-13 100-00832-06 / 100-00832-17 100-00832-10 / 100-00832-21 Ignitor 120/240 VAC Ignitor Construction-Gray Noryl Encl. Connection-Edge Connector Auto. Restart Flame Sense Method Tries for Ignition before Lockout Pre-purge (sec.) Inter-purge (sec.) Trial for Ignition Connection Lockout Reset Method Construction Connection - Quick Connect Terminals Auto Reset Comments Heatilator, 15695D, superior 901253, temco 1872913 Pre-purge / Inter-purge (sec.) Valve Trial Time (sec.) 4 Type Non-Pre-Purge, Enclosed Supply Voltage 24 VAC RAM Part No. Robertshaw Part No. 100-00832-13 Ignition Attempts 1
- Height 3.000
- Length 6.500
- Series 780
- Width 5.100
| Replacement heating element & igniter type | Ignitor |
|---|---|
| Brand | Unbranded |
| Model | 780-502 |
| Features | Energy Efficient |
| Has nrtl listing certification | N |
| Has written warranty | No |
| Pieces | 1 |
