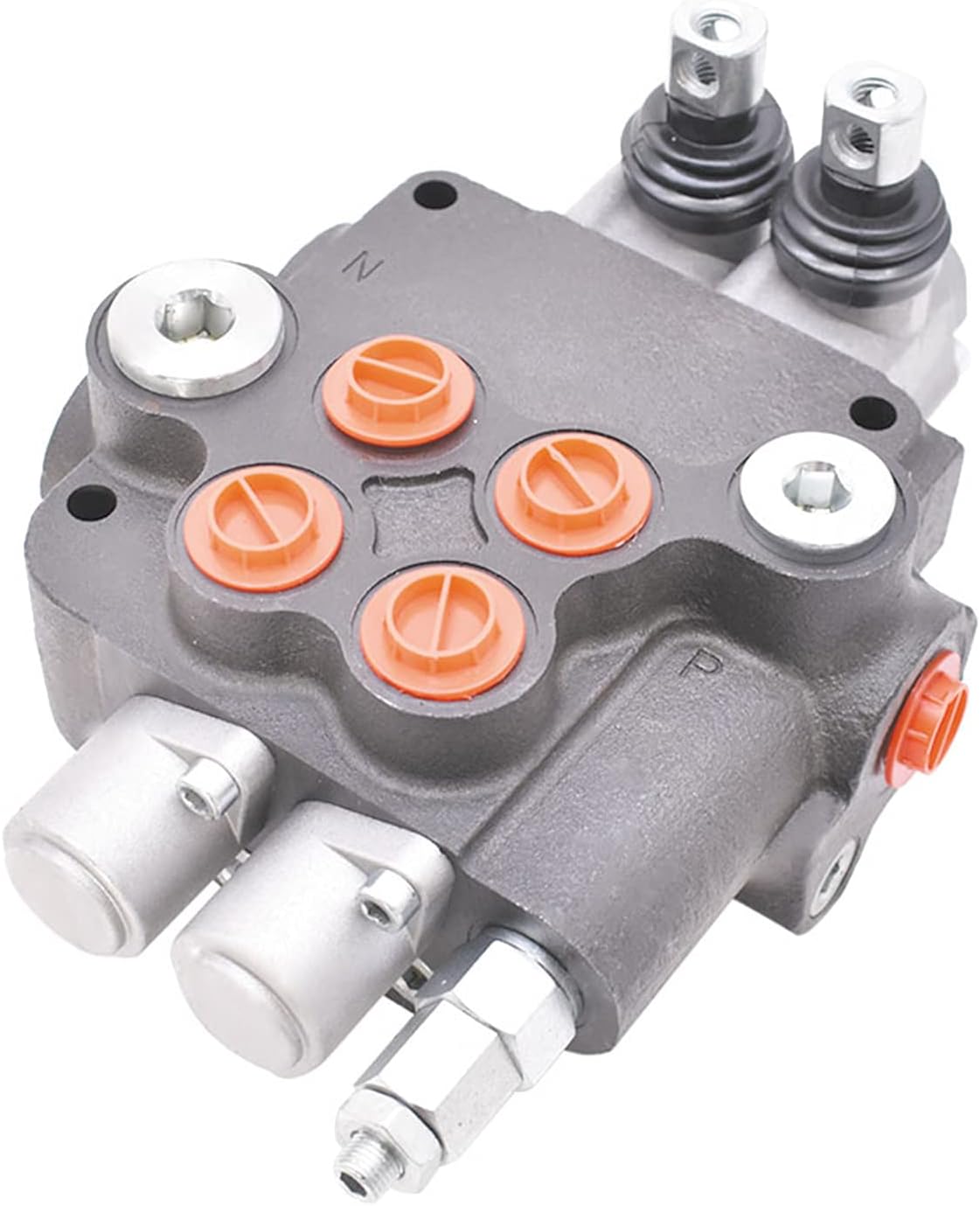

ALL-CARB 2 Spool 21GPM Hydraulic Valve Hydraulic Directional Control Valve Double Acting Valve 3600PSI SAE Ports for Small Tractors Tractors Loaders Log Splitters

SpecificationsInlet port: SAE 10Outlet port: SAE 12Working ports: SAE 10Max pressure: 3600PSIFeaturesSpring ReturnInner Check/Relief ValveThe compact design of the 2-spool hydraulic control valve can manage and direct hydraulic oil flow in between hydraulic pumps and hydraulic cylinders, motors, tanks, etc. The adjustable release valve and durable cast iron body are easy to use. It has 4 way 3 positions, and the spring center to neutral all spools.Package Content1 x 2 Spool Hydraulic Control Valve Double Acting 21GPM 3600PSI SAE Ports

• Durable Quality - The hydraulic directional control valve is of cast iron structure, which is not easy to be damaged and has a long service life
• High Efficiency - The relief valve range is up to 3600PSI and the maximum flow is up to 21GPM.
• Double Acting - Hydraulic control valve for operating double acting cylinders.
• Spring Return - All spools are standard double acting with spring return to the neutral position which is ideal for double-acting cylinders.
• Wide Application - Fit for small tractors, tractors loaders, log splitters, and etc.
